Name: Precious metal pancake slip ring, operating in a wide range of temperature throughbore slip ring
Brand: Precious metal pancake slip ring, operating in a wide range of temperature throughbore slip ring
SKU: LPK025-0405-0802
Rating: 4.7 (115 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: LPK025-0405-0802

Type: Electronic Accessories

Circuits: 4/8 Circuits

Voltage Rating: 220VDC/AC Or Higher

Current Rating: 5A/2A Per Circuit

Contact Material: Precious Metal

Basic Infomation

Model Number: LPK025-0405-0802

Payment & Shipping Terms

Product Description

Bargain Price Only in Alibaba

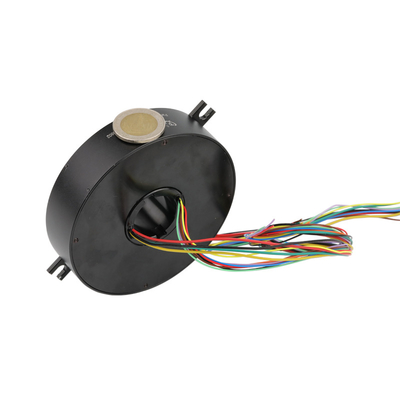

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot.

Features

High Rotating Speed
Unfailing contact, light figure
Extremely low physical noise
Transmitting power and signal in 360° rotation
No interference or connection drop

Advantages

Ready-made photoelectric encoder
Optional solid and hollow shafts
Rapid delivery
Custom solution

Specification

Electronic & Electric		Mechanical
Circuits	4circuits * 5A 8 circuits* 2A	Working Speed	0~50rpm
Working Voltage	220VDC/AC	Contact	Nobel Metal
Dielectric Strength	≥1000V@50Hz(Current) ≥500V@50Hz(signal)	Housing	Oxidation Black of Aluminum Alloy
Insulation	500MΩ@500VDC(Current) 100MΩ@300VDC(signal)	Wire Length	Stator Wire:300mm Rotor Wire: 300mm
Environment		Remarks
Temperature	-20°C~+60°C	Installation Method	Stator is fixed on the spindle provided by customer
Humidity	≤60%RH
IP	IP54

Main Application

Packaging / wrapping machinery
Semiconductor handling systems
Industrial machinery
Exhibit Display machinery
Medical equipment
Rotary index tables
Process control equipment
