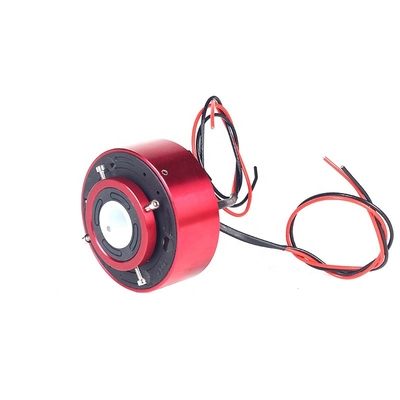

SRH2078-2P ID20mm，OD78mm，2 wires, Power(10A)/ring

Through-hole conductive slip ring is a collective name for a series of conductive slip rings with a hole in the center, which are mainly used to transmit power current, precision signals, weak signals, large currents and various signals. It is suitable for any equipment that needs to transmit power and signal when it needs to rotate 360°.

Features and Advantages

1.It is mainly designed for gas-liquid pipelines to pass through or to rotate the motor shaft. 2.Adopt advanced precious metal cluster brush multi-point contact to ensure reliable contact under extremely low friction. 3.The diameter of the through hole ranges from 3mm to 300mm, larger sizes can be customized. 4.Support mixed transmission of quality signal, power, gas and liquid media. 5.The number of circuits and current and voltage can be customized based on the standard model.

Electrical Data	Value
Electrical Data		Power	Signal
Working Life	Refer to the product grade selection table
Rated Voltage	0~240VAC/VDC	0~240VAC/VDC
Insulation Resistance	≥500MΩ/500VDC	≥500MΩ/500VDC
Wire Specification	Silver-plated Teflon	Silver-plated Teflon
Wire Length	Standard 300mm
Dielectric Strength	500VAC@50Hz，60s
Dynamic Resistance Change Value	<0.01Ω
Mechanical Data	Value
Working Speed	Refer to the product grade selection table
Working Temperature	-30℃~80℃
Operating Humidity	0~85% RH
Contact Material	Refer to the product grade selection table
Shell Material	Aluminum alloy
Rotating Torque	0.05N.m+0.02N.m/6 ring
Protect Grade	IP51

Installation Method

Fix the slip ring rotor: Tighten the screws of the slip ring rotor to fix it with the rotating shaft of the equipment.

Fix the slip ring stator: Use screws or pins to fix the slip ring's anti-rotation piece with the equipment, but don't lock it too tightly. The slip ring anti-rotation piece should leave a certain movable gap with the fixed end of the equipment.

Matters Needing Attention

1. Yading slip ring is a precision electrical component, please do not disassemble it by yourself, so as not to affect the performance of the slip ring; 2. The slip ring body must not be used for load-bearing, and the wire must not withstand external tension; 3. The slip ring is maintenance-free, no need to add lubricant to lubricate; 4. Be sure to protect the wires when installing; 5. IP51 slip ring should avoid working in humid and dusty environment, and protective measures should be added in harsh environment.If used in harsh environments, it is recommended to exchange for slip rings with IP54 or higher; 6.When using the anti-rotation rod (pin or screw) to fix the anti-rotation piece, a certain degree of freedom should be ensured, and it must not be forcibly fixed, otherwise the slip ring may be damaged or the normal service life may not be reached;

PAYMENT METHOD
We accept T/T, Paypal, Western union, L/C. Since you made the payment successfully, you can send us the Reference NO or MTCN.

TRANSACTION PROCESS
Quotation→Price confirm→Sign a contract→Mass production→Delivery.
For more details, please contact us,We offer you professional service in fluent English.
Any inquiries will be replied within 24 hours.

OEM Available

WARRANTY One year

QUALITY ASSURANCE
we have 100% test before delivery.
Strong production capacity and strictly quality contol system;

DELIVERY
Standard products:1-3 days
Simple customized products:3-5 days
Complex customized porducts:10-20 days
The specific delivery time depends on the items and the quantity of your order.

MOQ=1pcs
We are pleased to send you samples to test the quality and performance.we are confident that once you get it in your hand,you will be very satisfied.Moreover,with our excellent service and competitive price,we believe that we will be your first choice for slip ring.

SHIPMENT METHOD:by Express,by air,by sea,by train.Normally we checked and compare, then provide customer the most proper shipment method.

PACKAGE Carton Package ,Inner Package: Bubble PVC Bag. Products can also be packaged according to customers' needs.

LOADING PORT Shanghai or Ningbo Port

Model	Length(mm)	Power（10A、15A）	Signal（0~5A）
SRH2078-0210P	29.5	2	-
SRH2078-0410P	37.5	4	-
SRH2078-0610P	55	6	-
SRH2078-12S	79	-	12
SRH2078-18S	103	-	18
SRH2078-24S	127	-	24
