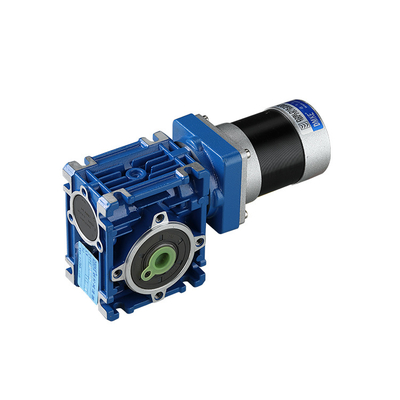

Totally Enclosed Low Noise Low Rpm Worm Gear Reducer Motor 12V 24V 200Kg Cm 30Nm 50Nm Dc Worm Gear Motor With Break

1 set
MOQ
Totally Enclosed Low Noise Low Rpm Worm Gear Reducer Motor 12V 24V 200Kg Cm 30Nm 50Nm Dc Worm Gear Motor With Break
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Model Number: D2BLD/RV30/RV25
Usage: FAN, AGV/Robot/Forklift/Packing Machinery/Industrial Machine/Automatic Machine/Smart Appliances
Type: Brushless Motor
Torque: 1.1N.m-21N.M
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Totally Enclosed
Speed(RPM): 25-267RPM/Custom
Continuous Current(A): 0.12A-15.63A
Efficiency: IE 2
Motor Type: 57mm Brushless Worm Gear Box DC Motor
Direction Of Rotation: CW/CCW
Rated Voltage: 12V, 24V, 36V, 48V, 310V
Gear Ratio: 1:7.5-1:80
Poles: 4 Poles
Wrom Gearbox Length: 75mm-115mm
Protection Rank: IP54
Certificates: CCC, CE, ROSH, LVD, EMC
Environment Temperature: 0-50℃
Customized: Motor Length, Power, Shaft, Speed, Voltage, Controller, Etc.
Basic Infomation
Certification: CCC, CE, ROSH, LVD, EMC
Model Number: D2BLD/RV30/RV25
Payment & Shipping Terms
Packaging Details: According to the size of the motor for safe packing. Normal packing:1pcs with 1 inner carton and 1 outside carton
Supply Ability: 10000 Piece/Pieces per Month
Product Description
Feature:
A. High power range from 50W to 2KW
B. Dia: 57mm-110mm
C. Easy for speed & direction adjustment
D. Rich stock and fast shipping time in 10 working days
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
K.High-performance and stable matching driver and controller
Specification
Kindly remind: As different customers may need different motor parameter for fitting your equipment. If below motor can't fit your need, please kindly send inquiry to us with information for rated power or torque,rated speed, and rated voltage for our new size drawing making for you. CLICK HERE to contact me. Thanks a lot!

Dimensions (Unit: mm )
Mounting screws are included with gear head.
Motor Power
50W
 100W
150W
Motor Length
75mm
95mm
115mm
Motor Rated Speed
2000rpm



57mm BLDC Motor with RV25 Worm Gearbox Size Dimensions

57mm BLDC Motor with RV30 Worm Gearbox Size Dimensions

60mm BLDC Motor with RV25 Worm Gearbox Size Dimensions

60mm BLDC Motor with RV30 Worm Gearbox Size Dimensions

57mm 50W BLDC motor with RV25 worm Gearbox

57mm 100W BLDC motor with RV25 worm Gearbox

57mm 100W BLDC motor with RV30 worm Gearbox

60mm 200W BLDC motor with RV30 worm Gearbox
Main Products
Company Profile
DMKE motor is a specialized motor company founded in Y2009 by Haibing Jian,who boats 18 years of experience in the motor and controller industry. Our company located in Panyu,Guangzhou,China.

Our main products are brushless dc motor, brushless controller, dc servo motor and controller, planetary gear motors, worm gear motors, brush dc motor and AC motor. They are widely used in AGV, RGV, robots, barrier gate, lifting equipment, cleaning machines, medical equipment, cafe machinery, packing machinery, amusement game machines, automobiles, industrial equipment etc.

With a plant area of 4000 square meters, we have the independent design and development capabilities and strong technical force,with an annual output of more than 1 million units. We can accept OEM motor and controller based on customers’ need.

Our Advantages
FAQ
Q1: What kind motors you can provide?
A1: For now, we mainly provide Brushless DC Motor, DC Servo Motor, Drive Dheel, Servo Electric Cylinder, Gearbox, Motor Controller, with diameter range from 16 to 220mm, and power range from 5W to 20KW.
Q2: Are you motors reversible?
A2: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.
Q3: Is it possible for you to develop new motors if we provide the tooling cost?
A3: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make our evaluation. Welcome to click here to send your requirements.
Q4: What is your after-sales services?
A4: A) Free maintenance within 12 months guarantee, lifetime consultant.
       B) Professional solutions in installation and maintenance.
