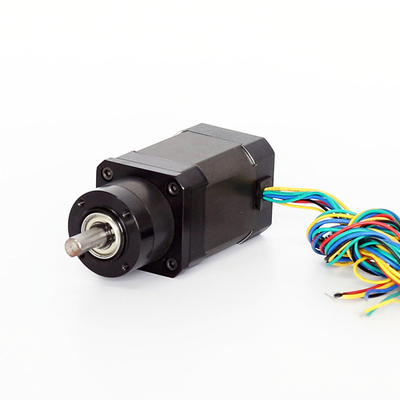

12v 24v Dc Motor Low Rpm High Torque Brushless Dc Geared Motor S42BL61-240

10 Pieces
MOQ
$36.51(10 - 99 Pieces) $32.86(100 - 199 Pieces) $29.21(>=200 Pieces)
Price
12v 24v Dc Motor Low Rpm High Torque Brushless Dc Geared Motor S42BL61-240
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year
Model Number: S42BL61-240
Type: Brushless Motor
Torque: 0.125
Construction: Permanent Magnet
Commutation: Brushless
Speed(RPM): 4000
Number Of Poles: 8
Number Of Phases: 3
Nominal Voltage VDC: 24
Certification: Ce
Basic Infomation
Certification: ce
Model Number: S42BL61-240
Payment & Shipping Terms
Product Description
Product Description

12v 24v dc motor high torque low rpm brushless dc geared motor

42 BRUSHLESS DC PLANET GEAR MOTOR

Product details

Number of Poles 8
Number of Phases 3
Nominal voltage VDC 24
Product Keywords Speed Reducer Gearbox BRUSHLESS DC PLANET GEAR MOTOR,Speed Reducer BRUSHLESS DC PLANET GEAR MOTOR,Sewing Machine BRUSHLESS DC PLANET GEAR MOTOR

Housing Material

Metal

Bearing at output

Ball Bearings

Radial play of shaft

≤0.04mm

Thrust play of shaft

≤0.3mm

Backlash,at no-load

≤3°


Model

S42BL41-240

S42BL61-240

S42BL81-240

S42BL101-240


Number ofPoles

8


Number ofPhases

3


Nominal voltage VDC

24


Rated speedRPM

4000


Rated TorqueN-m

0.0625

0.125

0.185

0.25


Rated Current Amps

1.8

3.5

5.2

6.6


Output Power Watts

26

52

78

105


Peak Torque N-m

0.18

0.38

0.55

0.75


Peak Current Amps

5.4

10.5

15.6

20


Torque constantN-m/A

0.041

0.041

0.041

0.041


Back EMFV/k RPM

4.36

4.36

4.36

4.36


Body Length (L)mm

41

61

81

101


Weinghtkg

0.33

0.45

0.65

0.8

PLANET GEAR Electrical Specifications

Number of gear trains

1

2

3

4

Reduction ratio

3.7 ,5.2

14 ,19, 27

51,71,100,139

189,264,369

(L2)

mm

31

35.8

42.1

48.9


N.m

0.3

1

2

3


N.m

0.9

3

6

9


%

90

81

73

66


g

191

207

288

312
