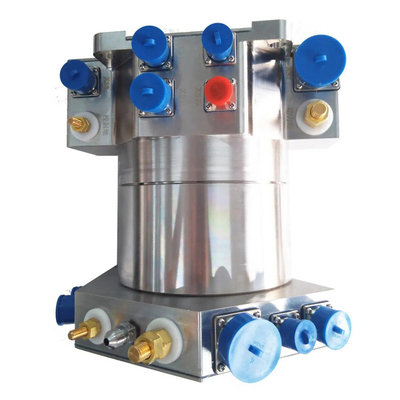

Ingiant Automatic Industrial Machine Customized Slip Ring Ethernet Combine Rotary Joint Pneumatic Slip Ring

Our advantage:

More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems.

More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.

High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.

10 million revolutions of quality assurance, so that you have no worries to cooperate with us!

Applications:

Widely used in aviation, aerospace, ships and other military fields, but also widely used in factory automation, instrumentation, and other mechanical and electrical equipment.

Non-standard customization options:

1. Customizable outlet mode and length of rotor and stator

2. Due to structural constraints, it can be customized according to specified length or height or outer diameter.

3. Supports up to 200 power currents or signals.

4. Optional Aviation Plug, Terminal and Heat-shrinkable Tube

5. Mixed high-speed data transmission (including Ethernet, USB, RS232, RS485, Profibus, Canbus, CANOPEN, DeviceNET, CC-LINK, ProfiNET, EtherNET and other industrial buses)

6. Temperature control signal, thermocouple signal mixing

7. Customization of special environment such as quakeproof and high temperature

8. High temperature customization up to 500 degrees

9. High voltage can be customized to 110 kV

Customizable parameters:

Route number, aperture, size, current, protection level, sliding ring speed

Combination transmission of video, USB, HDMI, optical fiber, radio frequency, Ethernet signal

Combination transfer gases and liquids

FAQ:

Q1: What technical data should be provided for our customized slip ring model.

A: If you want to customize the special slip ring model, you need provide details as below:

1.operatring speed(RPM)

2.the type of installation

3.outline size

4.channels(the No. of single wire besides cable)

5.rated voltage & current for power rings and signal rings

6.the signal type and related

parameters(very important)

7.operating temperature h.IP(sealing requirements)

Q2: How long is your production lead time?

A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,

15 to 40 days for complex customized products.

Q3: What's your delivery port?

A: Our delivery port is Jiujiang, China Mainland

Q4: How do you delivery our goods?

A: Usually small orders can be delivered by air, big orders can be delivered by sea. It can be negotiated before delivering.
