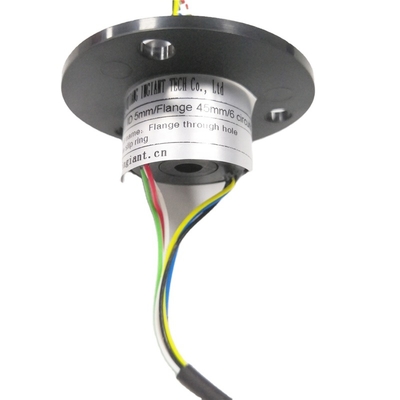

Electric Transfer High Precision 8 Rotating Mini Channel 2A For Electric Conveyor Systems Rotate Slip Ring

Wires

Max 12(see table as above)

Current

Signal(2A),Multiple 2A

Voltage

240 VDC/VAC

Max speed

250RPM

Overall diameter

12.5mm(0.87")

Length

13mm

Contact Material

Precious Metal:gold-gold

Contact Resistance

<150mOhm(AWG28#,250mm)

Housing Material

Plastics

Torque

0.03N.m

Working life

depends on working speed

Electrical noise

<10mΩ

Dielectric strength

600VDC@50Hz

Lead Wire

UL Teflon® Awg28

Insulation resistance

1000MΩ@500VDC

Lead Lengths

250mm

Operating Temp.

-40°C to 80°C

Protection

IP51

Mechanical vibratio

MIL-SID-810E

Humidity

10% to 90% RH

Materials

Lead Free,RoHS compliant

CE Certified

YES

Capsule Electrical Slip

Out Diameter

12.5mm

Current Standard

2A

Circuits No.

8

Max Speed

300MRP

Voltage

220 VDC/VAC

Lead Length

230mm

Lead Size

AWG12

Colour Coded FPE Insulated Lead Wires

Housing Material

Engineering Plastics

Work Life

>20million Revolution

Contact Material

Gold-Gold

Electrical Noise

<6mΩ

Torque

0.1N.m,+0.03N.m/6Circuit

Contact Resistance

<8mΩ

Lead Wire Spc

UL Teflon@Awg 12

Dielectric Strength

1000VDC@50Hz,10s

Insulation Resistance

1000MΩ@600VDC

IP grade

IP 51

Work Temperature

-40°C to 80°C

Material

RoHS
