Name: 3 wire 30a slip ring water proof slip ring, low signal transmission loss, crane slip ring LPTS000-0330-1105-SY50
Brand: 3 wire 30a slip ring water proof slip ring, low signal transmission loss, crane slip ring LPTS000-0330-1105-SY50
SKU: LPTS000-0330-1105-SY50
Rating: 4.8 (175 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: LPTS000-0330-1105-SY50

Type: Electronic Accessories

Current Rating: 5, 30A

Voltage: 9~36 V

Working Speed: 0~300 Rpm

Working Temperature: -20~+60â„ƒ

Basic Infomation

Model Number: LPTS000-0330-1105-SY50

Payment & Shipping Terms

Product Description

Bargain Price Only in Alibaba

RF Rotary Joint Slip Ring Description

The LPTS000-0330-1105-SY50 through bore slip ring is specially designed for cranes that rquire unrestrained, continuous rotation while transferring power or data from its stationary to the rotating structure.

RF Rotary Joint Slip Ring Features & Advantages

Be able to transmit power and signal including throttle signal, CANBus signal, angular ring signal and encoder signal at one time
Precise location in the angular ring, up to +/-2°
Lifting capacity: 12T~350T
Watertight performance
IP67 high protection level
Prompt delivery

Specification

Electronic & Electric		Mechanical
Circuits	3* 30A, 85A, 2 CANBus, 1*Throttle Signal	Working Speed	0~100rpm
Voltage	9~36V	Contact	Precious Metal
Dielectric Strength	≥1000V@50Hz between Circuits	Housing	Metal(yellow surface)
Insulation	1000MΩ@500VDC	Wire Size	FLRY-B4.0mm²/ FLRY-B0.75mm² Automotive Wire/ CANBus Cable9841(2*0.75mm²)
Electrical Noise	≤70mΩ (50rpm)	Wire Length	Stator:1.2m Rotor:3.3m CANBus:4.3m
Environment		Remarks
Working Temperature	-30℃~+70℃	Application		Crane
IP	IP67	Life		≥3 million turns

RF Rotary Joint Slip Ring Application

Radar antenna
Rotary Platform
Engineering machine
Packaging Machine
Test Equipment

Outline Drawing

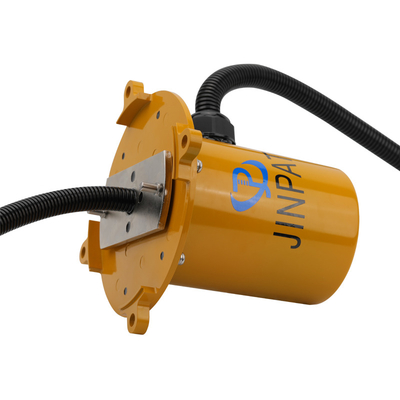

RF Rotary Joint Slip Ring Product Display
