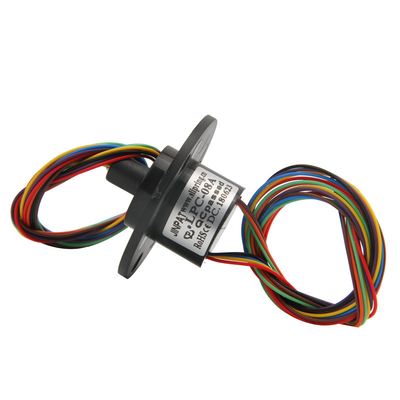

Name: Capsule Slip Ring Capsule Slip Ring, 8 Wires 2A, 240V Max Slip Ring With Flange
Brand: Capsule Slip Ring Capsule Slip Ring, 8 Wires 2A, 240V Max Slip Ring With Flange
SKU: LPC-08A
Rating: 4.5 (102 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: LPC-08A

Type: Electronic Accessories

Working Speed: 0~300 Rpm

Current Rating: 2A

Circuit Number: 8

Style: Capsule Slip Ring

Basic Infomation

Model Number: LPC-08A

Payment & Shipping Terms

Product Description

Bargain Price Only in Alibaba

Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from 22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.

Electrical slip ring Specification

Circuits	8
Current Rating	2A
Voltage	240VAC
Dielectric Strength	≥500V@50Hz between circuits
Insulation	100MΩ@500VDC
Electrical Noise	≤15mΩ
Working Speed	0~300 RPM
Contact	Precious metal
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

Electrical slip ring Main Application

Electric devices
Motor equipment
Industrial machinery
Exhibit/Display machinery
Medical equipment
Process control equipment

Outline Drawing
