Home /Products/AC Electric Motors/30HP / 22KW YCT 250 Magnetic Adjustable Speed ​​Motor Waterproof

30HP / 22KW YCT 250 Magnetic Adjustable Speed ​​Motor Waterproof

5.0 Pieces
MOQ
$1,035.50(5 - 19 Pieces) $1,015.20(20 - 99 Pieces) $995.30(>=100 Pieces)
Price
30HP / 22KW YCT 250 Magnetic Adjustable Speed ​​Motor Waterproof
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 YEAR
Model Number: YCT-250-4B
Type: Induction Motor
Frequency: 50HZ/60HZ
Phase: Three-phase
Protect Feature: Waterproof
AC Voltage: 110V,220V,380V,400V,415V,440V,660V
Efficiency: IE 2
Motor Bearing: C&U (NSK OR SKF For Choice)
Motor Housing: Iron Cast
Motor Shaft: 45# Steel
Protection Class: IP55
Rotation Speed: 2900rpm, 3450rpm
Insulation Class: F Class
Color: As Request
Duty: S1
Certification: CE
Basic Infomation
Certification: CE
Model Number: YCT-250-4B
Payment & Shipping Terms
Packaging Details: Wooden Case Lined with Plastic Film Bags for Hot Sales IEC Standard Aluminum Housing 1kw AC Motor
Supply Ability: 2000 Piece/Pieces per Week
Product Description
Product Description

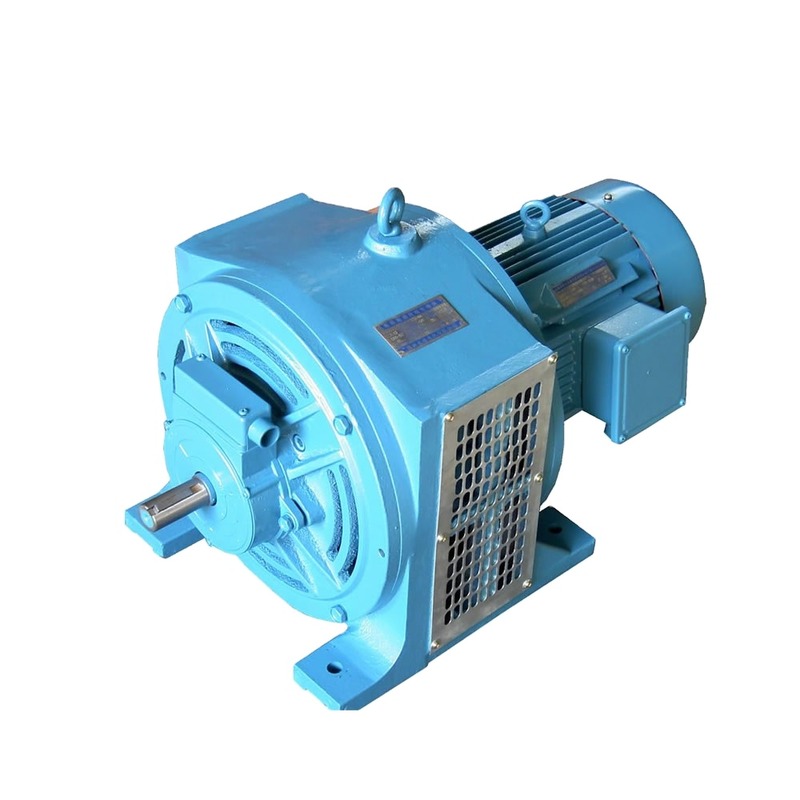

30HP/22KW YCT 250 Magnetic Adjustable Speed Motor


Features
YCT series electromagnetic governor motor consists of three phase indimagnetic difference change cluth and speed indicating generator.
It is widely applicable to the industries of textile, dying, cement, paper-making, printing, rubber, plastic, sugarmaking,
agitation, air blowing, fiber and cable, ect..

Be aware
1.The ambient temperatures shouldn't surpass 40°C,and not lower than -15°C.
2.Average maximumrelative humdity should not be over 90% per month .The average temperature within a month should not be over
25°C.
3. Elevation shouldn,t surpass 1000 metres.
4. Rating frequency is 50HZ
5. Rating voltage is 380V.
6. Work system is S.
7. Cooling mode is IC01
8.Duty type: S1( continuous),allows starting with full voltage
9. Speed regulation ratio:1:10
10.Protection class:IP 21
11.Power Range: 0.55-90KW
12. Central height of frame: 112-355mm

Model
YCT 250-4B
Power
22kw/30hp
Vol.Freq.
380 v / 50 hz (or customized)
Speed Range
1320-132RPM
Torque
137N.m
Excitation Voltage
< 90 V
Excitation Current
< 3 A
Mounted Type
B3
Material of shell
Iron cast
Related Products
Produce Line

We can design and manufacture electric motors with various voltage, frequency,protection degree, and mounting type according to customer's requirements, such as 220V, 380V, 400V, 415V, 660V, 50HZ/60HZ, IP44, IP45, IP55 and so on.

Packing & Delivery
Our Certifications
Customer Photo
FAQ

Q: Why the price is low? A: You are ordering directly from the factory? Q: Do you have import and export right? A:Yes, we do. Our factory has been certificated as an import and export enterprice. Q: Can we order a sample? A: Yes, you can order a sample to check quality Q: Do you accept the OEM? A: Yes, we can customize as request. Q: Where is your loading port ? A: Ningbo or Shanghai Port, China. Q: What is your production capacity? A: About 15000 set per month. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. If you have another question, pls feel free to contact us as below:
