Features

Specifications

Model Number: JSR-HY012-26E-1G

Type: Air Rotary Joint

MOQ: 1 Piece

Speed: 300RPM

Current: 2A/5A/15A

Voltage: 380Vac/Vdc

Contact Material: Precious Metal:Gold-Gold

Lead Length: 300mm

Lead Wire: TF Awg26,Awg22,Awg16

Housing Material: Aluminium Alloy

Product Name: Pneumatic Slip Ring

Basic Infomation

Model Number: JSR-HY012-26E-1G

Payment & Shipping Terms

Packaging Details: Gift box or custom packing pneumatic slip ring

Supply Ability: 500 Piece/Pieces per Week pneumatic slip ring

Product Description

JARCH 2 wire slip ring 2 ~ 36 Circuits Sealed Air Rotary Joint electrical pneumatic slip ring manufacturer

Name: Precious Metal: Slip Ring 2 | Air Rotary Joint Slip Ring Gold-Gold 2 Wire Circuit Sealed Electric Pneumatic Manufacturer 36
Brand: Precious Metal: Slip Ring 2 | Air Rotary Joint Slip Ring Gold-Gold 2 Wire Circuit Sealed Electric Pneumatic Manufacturer 36
SKU: JSR-HY012-26E-1G
Rating: 5 (161 reviews)

Product Description

JSR-HY012-26E-1G

***Through bore slip ring all size hollow slip ring

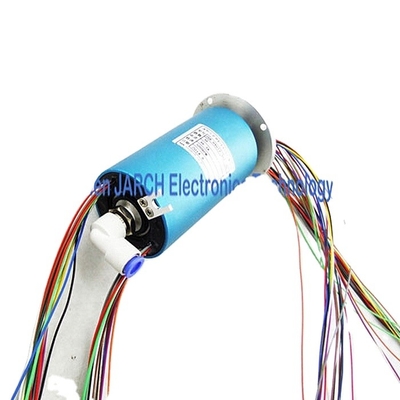

Blue Hybrid Slip Rings 2 ~ 36 Circuits / Sealed Air Rotary Joint With 5A Power

JARCH HY Series Pneumatic Electrical Rotary Union Support 2-24 passage way Pneumatic/Hydraulic, it can combine with power,signal,Ethernet,USB,Devicenet,Control Net,Canbus on request. It also could be mounted by shaft or optional flange mounting.Passage media types can use Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.

The JSR-HY012-26E-1G provide 1 passage rotary union combine36 circiuts 2A signal or 15A Power electrical slip ring.The slip ring provide a rotary flange can be install on a rotary table.

Benefits

Blue Hybrid Slip Rings 2 ~ 36 Circuits / Sealed Air Rotary Joint With 5A Power

1.300rpm Pneumatic electrical rotary union

2.ID/OD:6/56mm

3.1 passage with 8mm tube

4.Low Cost ,preferential prices
5.Unique signal handling performance

JARCH Hybrid Slip Rings 2 ~ 36 Circuits / Sealed Air Rotary Joint With 5A Power

Installation Instructions:Flange Mounted

Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery

Applications:

• Exhibit/display equipment

• Packaging / wrapping machinery

• Semiconductor handling systems

• Industrial machinery

• rotary index tables

• Process control equipment

If you have any questions, please contact us without any hesitation.

Customized on your request

If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Rion slip rings are included in this catalog!

For a detailed outline drawing/3D modal files of a specific model number, or to request a quotation, please contact your local sales representative or send an email as below:\

JARCH Hybrid Slip Rings 2 ~ 36 Circuits / Sealed Air Rotary Joint With 5A Power

Company Information

JARCH Company is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.

Blue Hybrid Slip Rings 2 ~ 36 Circuits / Sealed Air Rotary Joint With 5A Power

Medical Equipment 65mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Pancake Slip Rin

Blue Hybrid Slip Rings 2 ~ 36 Circuits / Sealed Air Rotary Joint With 5A Power

FAQ

Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
