Home /Products/Pancake Slip Ring/Stainless Steel 12mm IP66 , IP68 Double Channel FORJ / Fiber Optic Cable Joint Rotary Joint With Stainless Steel House

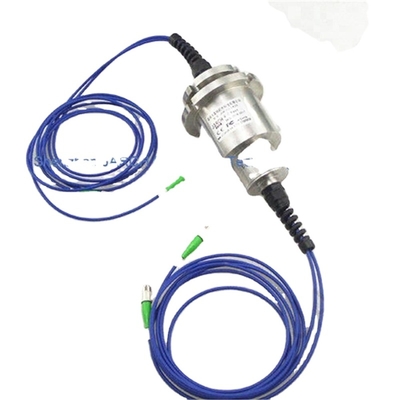

Stainless Steel 12mm IP66 , IP68 Double Channel FORJ / Fiber Optic Cable Joint Rotary Joint With Stainless Steel House

1 Piece
MOQ
$4,000.00(1 - 99 Pieces) $3,000.00(>=100 Pieces)
Price
Stainless Steel 12mm IP66 , IP68 Double Channel FORJ / Fiber Optic Cable Joint Rotary Joint With Stainless Steel House
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: JSR-FO-LX2
Type: Fiber Optic Rotary Joint
Housing Material: Stainless Steel
Optical Power Handling: 23dBm
Estimated Cycle: 200-400 Million Revolutions
Insertion Loss: <1.5dB
Wavelength Range: 850-1650nm
Max Speed: 150RPM
Protection: IP54 IP66,IP68 Optional
Dimention: 12mm Diameter
Weight: 30g/pc
Channel: 2 Channels Fiber Optic Rotary Joint
Basic Infomation
Model Number: JSR-FO-LX2
Payment & Shipping Terms
Packaging Details: Gift box or custom packing,4 Channnels Fiber Optic Rotary Joint
Supply Ability: 500 Piece/Pieces per Week 2 Channnels Fiber Optic Rotary Joint
Product Description

JARCH IP54,IP66,IP68 Double Channel Fiber Optic Rotary Joint / Fiber Optic Cable Joint With Stainless Steel House



Product Description



JARCH IP54,IP66,IP68 Double Channel Fiber Optic Rotary Joint / Fiber Optic Cable Joint With Stainless Steel House


JSR-FO-0111S fibre optic rotary joints are small and compact FORJ with OD 10mm, standard, off-the-shelf, available in stock. It could support 1 channel fiber optics(SM/MM) transmitting on 360° rotating. Single-channel (both Single-Mode and Multiple-Mode) rotary joints(FORJ) are the most versatile designs the market has ever seen. The rugged body allows fiber pigtail, ST, or FC receptacles on either the rotor side or the stator side. One can configure the package to fit his need exactly. features extremely low insertion loss and impressive return loss performance for both single mode and multimode fibers.MJ1 are often used with electronic slip ring, call optical-electrical hybrid slipring, transmit power and high speed data.

JARCH IP54,IP66,IP68 Double Channel Fiber Optic Rotary Joint / Fiber Optic Cable Joint With Stainless Steel House



Wavelength range 850-1650 nm Insertion loss ≤3.5 dB (typical: <0.5 dB)
Insertion loss ripple <+/-1.0 dB Return loss (SM) ≥40 dB
Maximum speed 150 rpm Pulling strength 10 N (900 um buffer)
Start up torque <0.01 Nm Estimated life cycle 200-400 million revolutions
Optical power handling 23 dBm Working temperature -40°C to 85 °C
Storage temperature -50°C to 85 C°C Package style Pigtails on both ends
Housing material Stainless steel Fiber types Single or multimode w/3 mm jacket (Kevlar/PVC)
Connector types FC, SC, ST, SMA, or LC Dimensions 10mm dia.
Weight 2500 g IP rating IP54/IP65
Vibration MIL-STD-167-1A Mechanical shock MIL-STD-810G








Benefits



JARCH IP54,IP66,IP68 Double Channel Fiber Optic Rotary Joint / Fiber Optic Cable Joint With Stainless Steel House




  •  Using light signal transmission, no electromagnetic leakage.
  •  Good sealing.
  •  Resistance to electromagnetic interference
  •  No contact transmission, no wear and tear.
  •  Long life, can be up to 10 million RPM.
  •  No friction, can be used in inflammable and explosive environment.
  •  Can be used in extreme natural environment.
  •  High magnetic current interference, also can work normally.



JARCH IP54,IP66,IP68 Double Channel Fiber Optic Rotary Joint / Fiber Optic Cable Joint With Stainless Steel House



Installation Instructions

 Dimension L To Be Advised When Ring And  Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery



Applications:

• Between in undersea robot and control ship

• Between in radar antenna and on-board signal processing system

• With the chariot rotating tower car body console

• Between in welding robot and console

• Remote mechanical input and output devices and control

• The photoelectric theodolite

• The connection between the platform and spacecraft tracking





JARCH IP54,IP66,IP68 Double Channel Fiber Optic Rotary Joint / Fiber Optic Cable Joint With Stainless Steel House

Related Products2

More slip rings for your choose...pls Click here:Contact me!

Fiber optic rotary joint/ FORJ

Through bore slip ring

PCB Slip rings

Capsule slip rings

multi-hydralic slip ring

Rotary joint/rotary unions

Flange mounted slip ring

Waterproof slip ring/S316L slip ring

Mercury rotating contact slip rings
Contact Us

If you have any questions, please contact us without any hesitation.





Product Effects
Small generator slip ring Wind power equipment Surveillance cameras Encoder slip ring Mechanical arm Beer production equipment
Rotating light box Milk production equipment Rotary silver plating production line Helicopter Rotating camera Radar communication
Rolling machine Flight equipment Hot roller Tank rotating turret Molding machine Revolving door
Automatic winding machine Rides LED advertising light Production line High speed ball Shadowless lamp



Packaging & Shipping

Packaging Details: Standard Export carton Package
Delivery Details: Delivery time for Sample:7 days / Delivery time for Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT,EMS......




Company Information

Founded in 2006, Shenzhen JARCH Electromechanical Technology Co., Ltd. is located in Shenzhen,China. We are a professional enterprise engaged in the manufacture and sale of Cable Reels & Hose Reels,Slip rings & fiber optic rotary joint,Rotary unions. We can supply a wide range of products to meet ever-changing market demands. Customized orders are welcomed,we can offer the best solution for your equipments.Outputting 1,000,000 sets every year, our main markets include North America,Eastern Europe,South Asia,Northern Europe,Western Europe,Oceania. Our company insists on the principle of Providing the High quanlity Product to customer in the Best Price.We are increasingly expanding our international market share based on quality products, excellent service, reasonable price and timely delivery. Please contact us at any time for more information.



FAQ



1.What technical data should be provided for our customized slip ring,forj,rotary joint union model.

A:

If you want to customize the special slip ring model, you need provide details as below:

a. Operatring speed(RPM)
b. The type of installation

c. Outline size

d. Channels(the No. of single wire besides cable)
e. Rated voltage & current for power rings and signal rings

f. The signal type and related parameters(very important)

g. Operating temperature h.IP(sealing requirements)



2.How long is your production lead time?



A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
